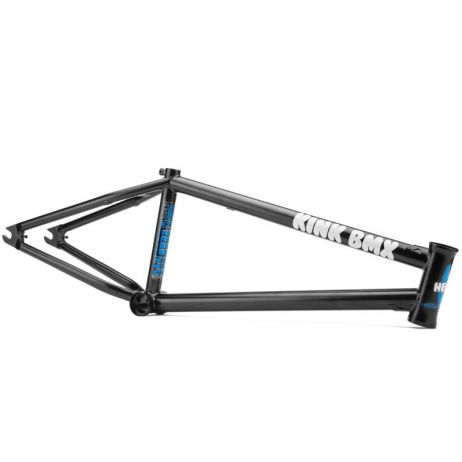

KINK WILLIAMS BMX FRAME ED BLACK

KINK WILLIAMS BMX FRAME ED BLACK

The Williams frame is Nathan Williams’ first signature frame from Kink and features modern street geometry while retaining a classic look. Despite the classic look though, the frame features several subtle details that should not be overlooked. The steeper 75.5-degree headtube is responsive, and the short 12.75” chainstay length makes the frame nimble without compromising on tire clearance; fitting up to 2.5” tires. The double butted toptube and downtube with gussets on both, ensure plenty of strength in the front end while the chainstay and seatstay bridge designs allot for generous tire clearance while adding as much stiffness as possible. Nathan’s frame of course comes standard with integrated seat post clamp, integrated chain tensioners, and removeable brake mounts. Additional details like the custom seatstay bridge badge inlay, and interior dropout knurling round out both the good looks and serious functionality of the Williams frame.

GEOMETRY

Toptube Sizes 20.5”, 20.75”, 21”, 21.25”

Chainstay Length        12.75” Slammed

Bottom Bracket Height          11.7"

Standover Height       9"

Headtube Angle         75.5°

Seattube Angle           71°

Headtube Height        5"

TECH SPEC

Material          100% Seamless Sanko 4130 Chromoly Tubing

Headtube        Integrated Campy Spec

Dropouts        Investment Cast with Integrated Chain Tensioners

Bottom Bracket          Internally and Externally Machined Mid Size BB

Braking           Removable Through-Bolt Brake Mount System

Particulars      Toptube and Downtube Gussets

Oval Chainstays For Tire Clearance Up To 2.5”

CNC’d Seatstay Bridge with Kink Badge Inlay

Anti-Slip Interior Dropout Knurling

Weight 4lb 15oz (20.75") / 2,23kg
