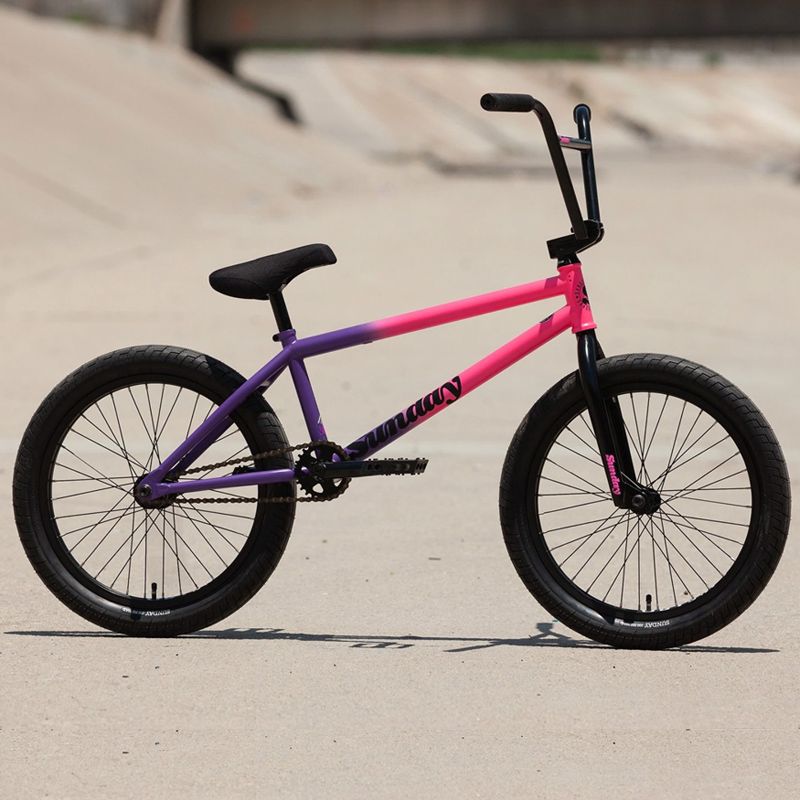

2022 STREET SWEEPER ‑ JAKE SEELEY SIGNATURE
Rider size: 1m70+
JAKE SEELEY, pro rider ODYSSEY and SUNDAY signature complete bike !!
Aftermarket Sunday Street Sweeper frame

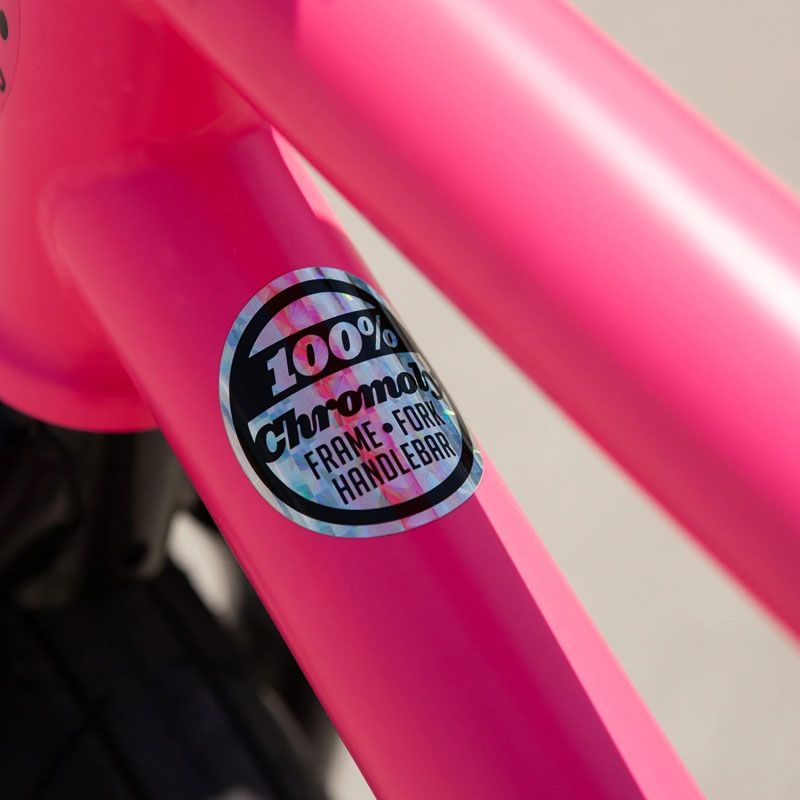

100% Chromoly Forks and 4-piece Bars
Sunday Seeley Signature Grips
Sunday Camo Sweep Seat, Pivotal
Odyssey Clutch v2 Freecoaster
Odyssey Quadrant Rims
FSA Conical Headset
Right Hand or Left Hand Drive
Sunday Street Sweeper 2.4" Tires
Specifications

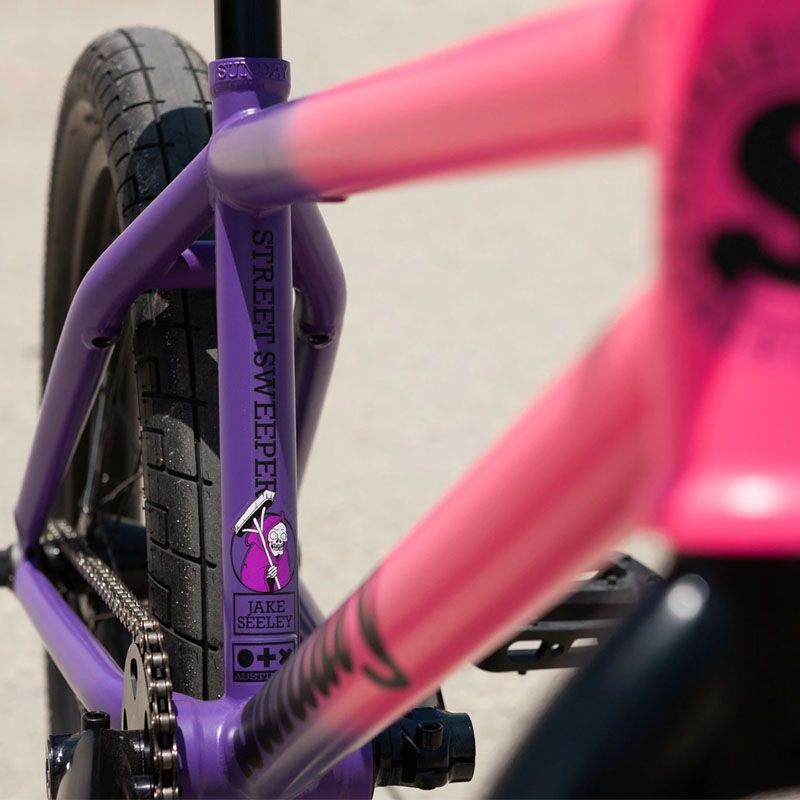

Frame: Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork: Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 4-piece
Stem: Sunday Freeze Top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic

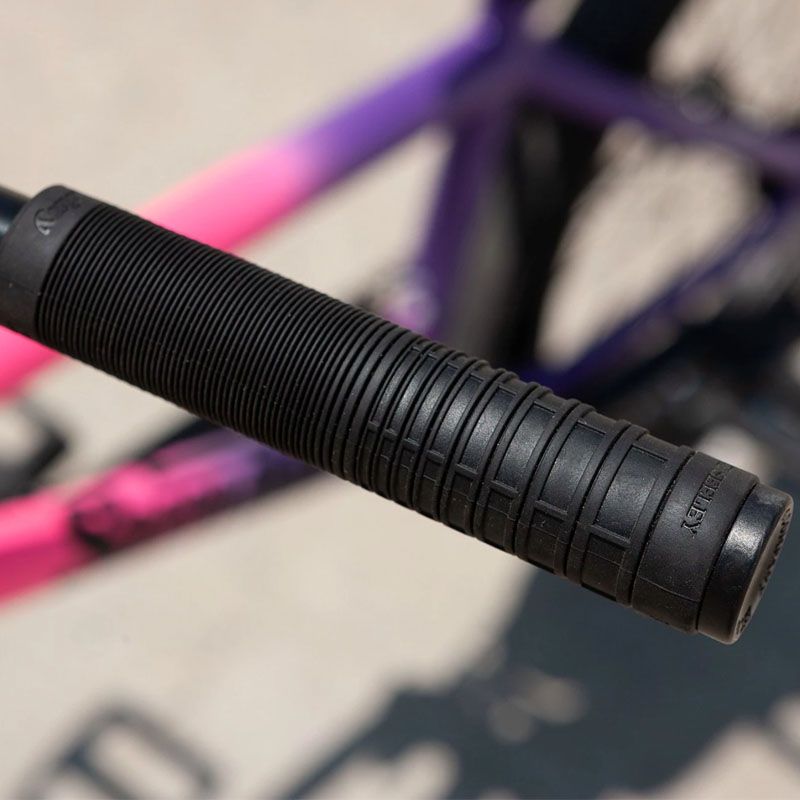

Grips: Sunday Jake Seeley

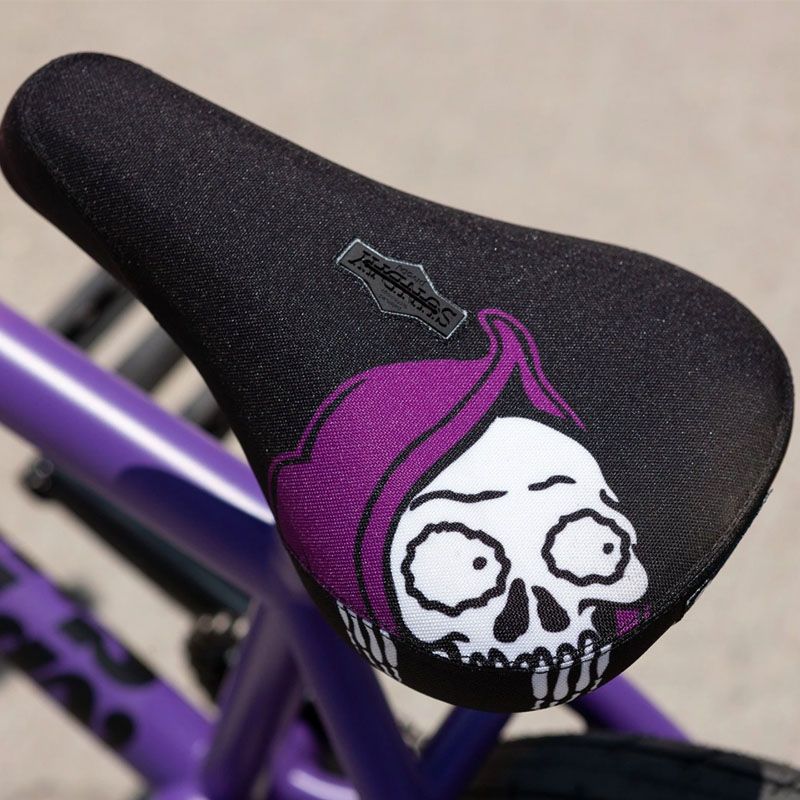

Seat: Sunday Creepy Sweeper, Pivotal
Seat Alternate: Sunday Duck Canvas Black, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Integrated

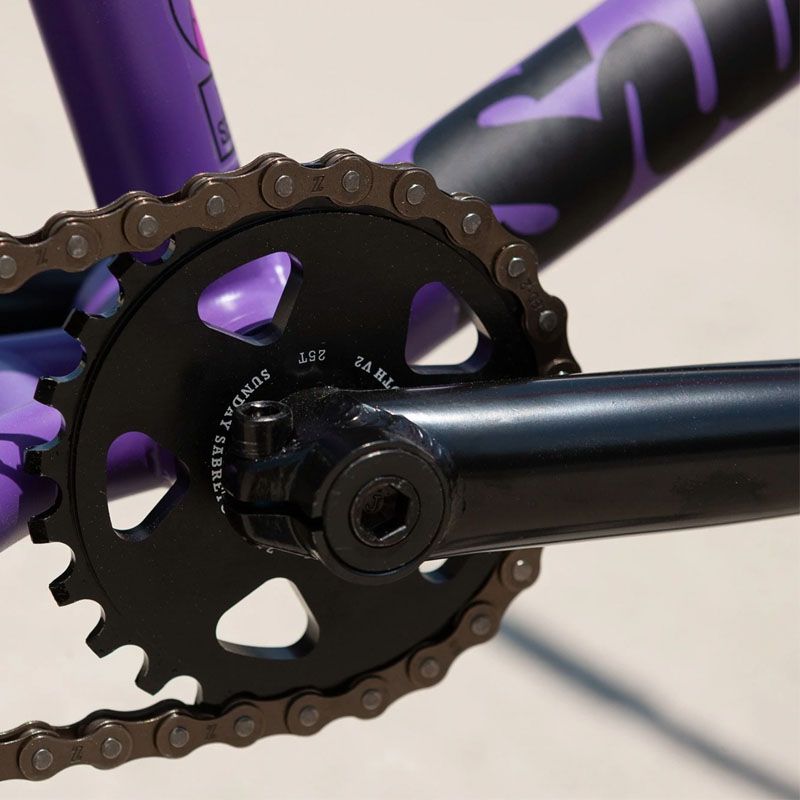

Sprocket: Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks: 160mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

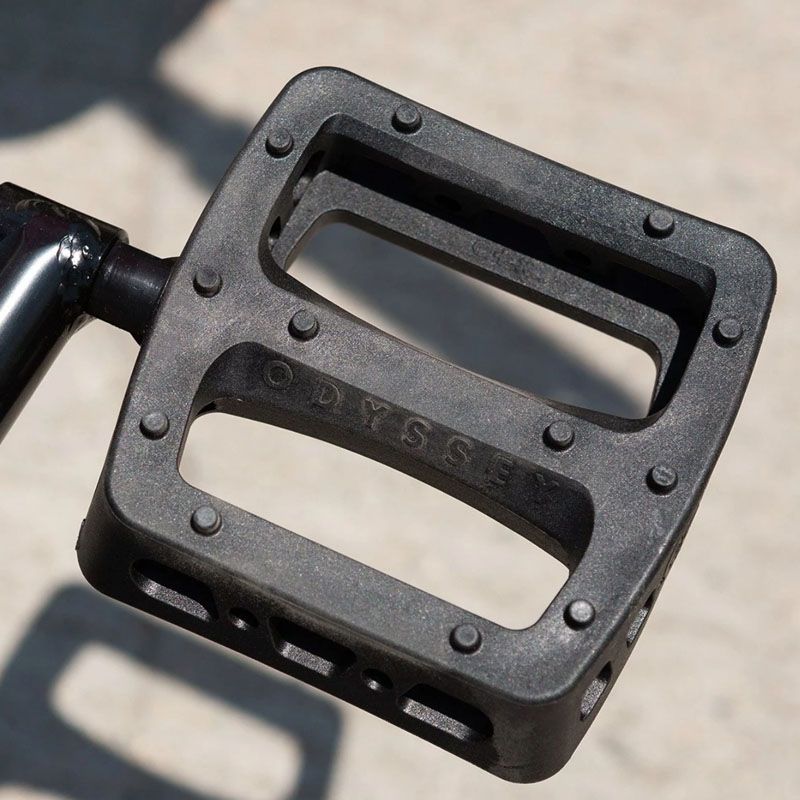

Pedals: Odyssey Twisted PC Pro

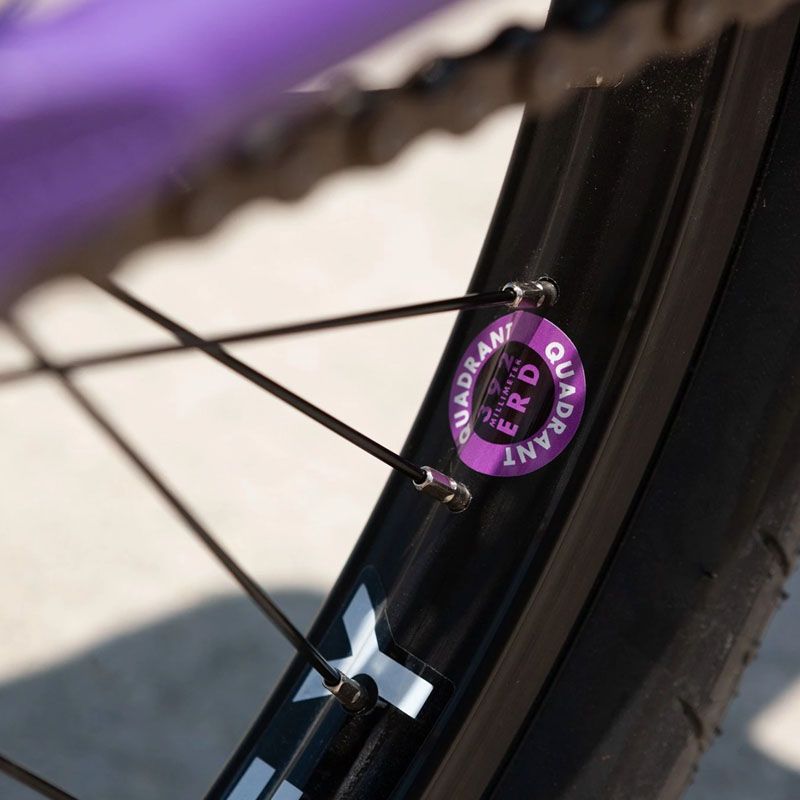

Rims: Odyssey Quadrant, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive PC guard
Spokes: 14g steel, black

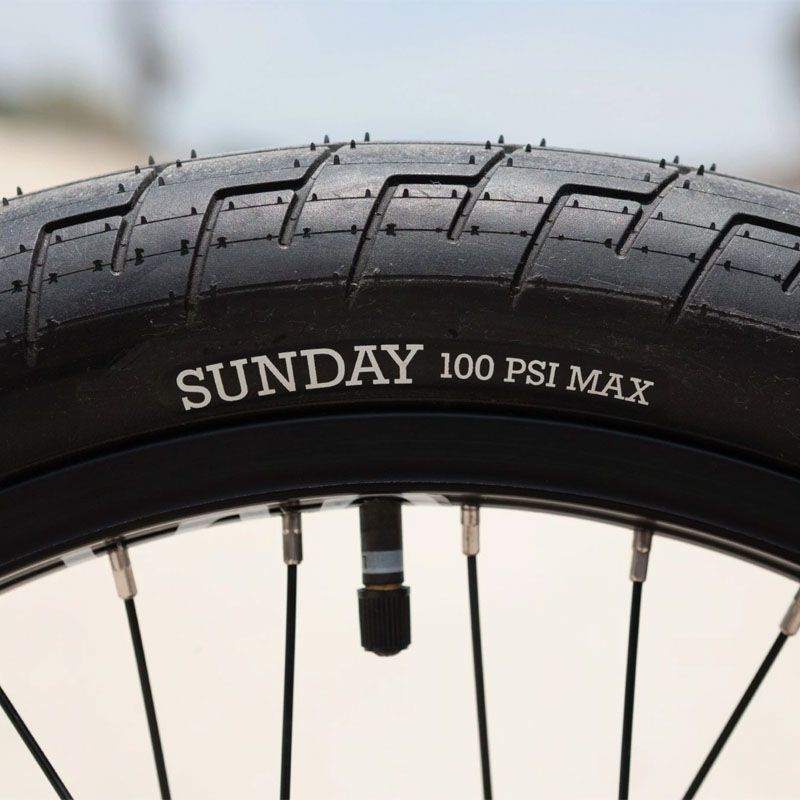

Tires: Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 24.97lbs (brakeless)
Frame Geometry
Top Tube Length: 20.75"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 12.7"-13”
Bottom Bracket Height: 11.7"
Headtube Length: 4.7"
Standover: 8.85”
Handlebar Geometry
Rise: 9"
Width: 29"
Backsweep: 12°
Upsweep: 3°
