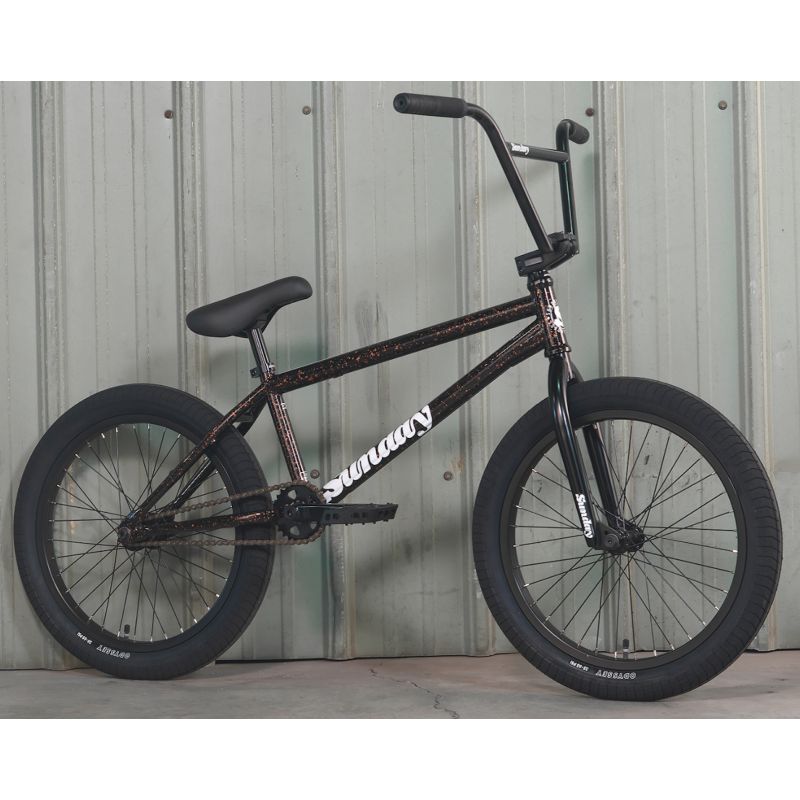

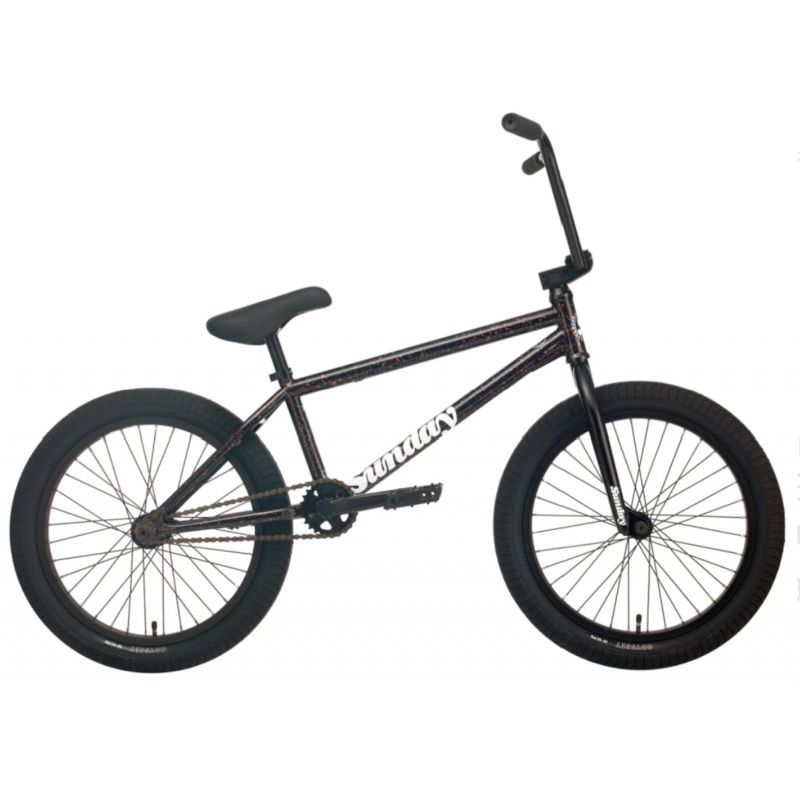

BMX SUNDAY EX20.75" ELSTRAN GLOSS COPPER 2022

BMX SUNDAY EX20.75" ELSTRAN GLOSS COPPER 2022

Rider size: 1m70+

ERIK ELSTRAN, pro rider ODYSSEY and SUNDAY signature complete bike !!

- CADRE, FOURCHE, GUIDONN 100% 4130 chromoly
- Sealed bearings,
- Odyssey clutch v2 freecoaster

MORE INFOS below

Frame: 20.75" top tube, 100% chromoly frame with wave downtube, removable brake hardware
Fork: Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 4-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap:  Sunday M16, aluminum
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Quik Slic
Grips: Sunday Jake Seeley
Seat: Sunday Badge, Pivotal
Seat post:  Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminum
Cranks: Sunday Saker, 165mm
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Sunday Lightning, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub: Odyssey Clutch V2 FC, 36H, 14mm female axle w/ 9T driver, RHD, non-drive side plastic guard
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 25.75lbs (with brakes)

FRAME GEOMETRY

Top Tube Length: 20.75"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 9"

HANDLEBAR GEOMETRY

Rise: 9"
Width: 29"
Backsweep: 12°
Upsweep: 3°
