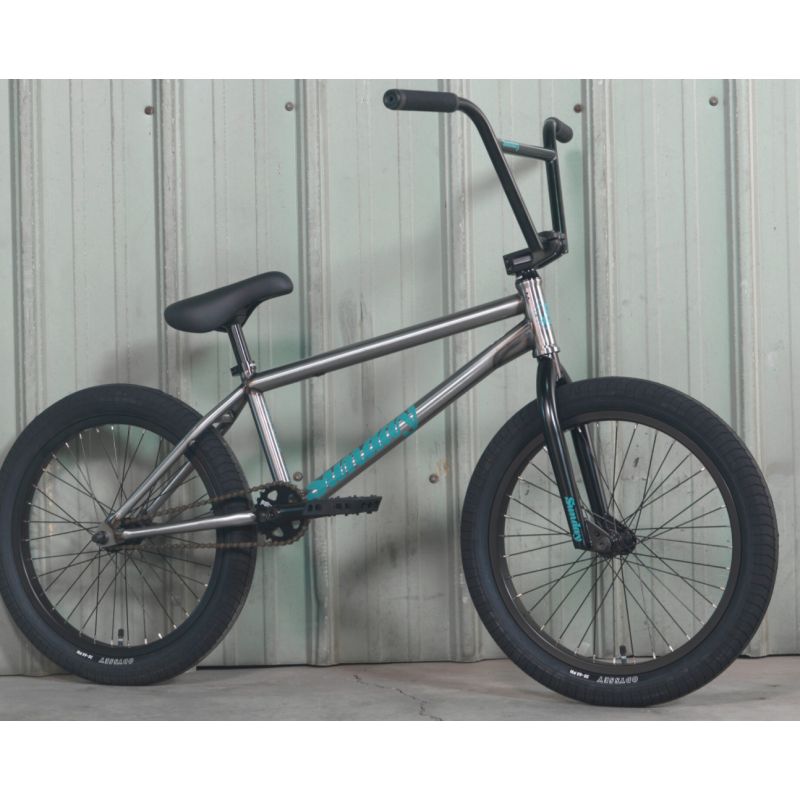

BMX SUNDAY FORECASTER SILVA 20.75" GLOSS RAW 2022

SUNDAY

BMX SUNDAY FORECASTER SILVA 20.75" GLOSS RAW 2022


Rider size: 1m70+

Brett Silva, pro rider ODYSSEY and SUNDAY signature complete bike !!

- Downtube et dropout en crmo 4130,
- sealed bearings,
- Rear Odyssey cassette hub 9T.
-4 pieces bar

Top Tube : 20,75"
Weight : 12.14 kgs

MORE INFOS below

More details

4

699,99 € Tax incl.

- +

  • YES
  • NO

More info

BMX SUNDAY FORECASTER SILVA 20.75" GLOSS RAW 2022


Rider size: 1m70+

Brett Silva, pro rider ODYSSEY and SUNDAY signature complete bike !!

- Downtube et dropout en crmo 4130,
- sealed bearings,
- Rear Odyssey cassette hub 9T.
-4 pieces bar

Top Tube : 20,75"
Weight : 12.14 kgs

MORE INFOS below

Frame: 20.75" top tube, 100% chromoly frame with integrated 1-1/8" head tube and removable brake hardware
Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset:  FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Quik Slic
Grips: Odyssey Broc Raiford
Seat: Sunday Badge, Pivotal
Seat post:  Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Sunday Lightning, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub: Odyssey Sealed Cassette Hub, 36H, 14mm male axle w/ 9T driver, RHD
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 26.78lbs (with brakes)

FRAME GEOMETRY

Top Tube Length: 20.75"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.7"
Standover: 9"

HANDLEBAR GEOMETRY

Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°

Data sheet

Rider sizes 1m70 and more
Top Tube length 20,75"
