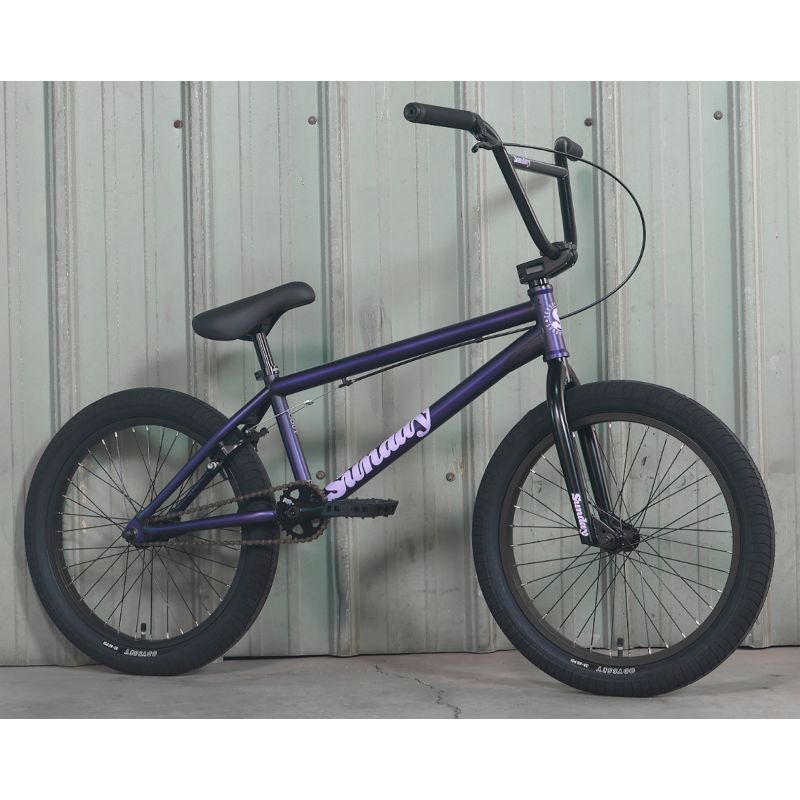

BMX SUNDAY SCOUT MATTE TRANS PURPLE 20.75" 2022

BMX SUNDAY SCOUT  MATTE TRANS PURPLE 20.75" 2022

Specifications

Frame: Sunday Scout, 20.75" top tube, integrated 1-1/8" head tube, chromoly down tube and dropouts
Fork: Sunday Scout, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze top load, 48mm
Headset:  FSA integrated, 1-1/8"
Alloy Cap:  FSA aluminum cap
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Quik Slic
Grips: Odyssey Broc Raiford
Seat: Sunday Badge, Pivotal
Seat post: Sunday, Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: P-7X aluminum, 20", 20H
Front Hub: Sunday, 36H, low-flange, sealed, 3/8" axle
Rear Hub: Sunday 36H, sealed, 14mm axle w/ 9T Driver
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 26.82lbs (with brakes)

Frame Geometry

Top Tube Length: 20.75"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 9”

Handlebar Geometry

Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°

SHIPPING OPTIONS:

Standard : your BMX arrived in a 1m20 long box, 80% assembled. You have to assemble front wheel, fork, handlebar, stem, seat. Pretty simple.

With gyro : we can had a gyro system to the bike. Allows you to spin the handlebar infinite times.

Fully assembled : Your bike will be fully assembled in a huge box and will be deliverd by a special agency. (3 to 5 open days).
