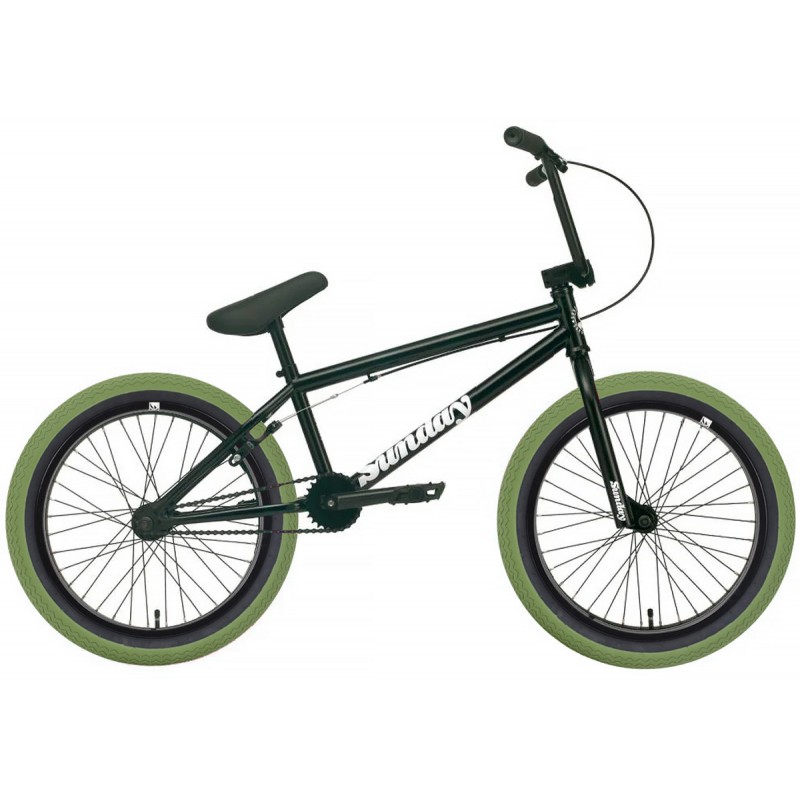

BMX SUNDAY BLUEPRINT 20" CUSTOM ARMY GREEN

Specifications

• Frame: Sunday Blueprint, 20" top tube, integrated 1-1/8" head tube
• Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load
• Handlebar: Sunday, 2-piece
• Stem: Sunday Freeze front load, 48mm
• Headset: FSA integrated, 1-1/8"
• Alloy Cap: FSA aluminum cap
• Brake Lever: Aluminum, U-brake compatible
• Brakes: Odyssey Springfield U-brake
• Brake Cable: Odyssey Quik Slic
• Grips: Sunday Cornerstone
• Seat: Sunday Badge, seat and post combo
• Seat Post: Integrated
• Seat Clamp: Integrated
• Sprocket: Sunday S-Logo, 25T, steel
• Cranks: 160mm, 3-piece, chromoly
• BB Parts: Loose-ball, American, 19mm
• Pedals: Wellgo platform, plastic
• Rims: P-7X aluminum, 20", 36H
• Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle
• Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
• Spokes: 14g steel, black
• Tires: Sawtooth Subrosa 2.3 army green
• Chain: KMC S1
• Approx. Weight: 26lbs (with brakes)

Frame Geometry

• Top Tube Length: 20"
• Head Tube Angle: 75°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2-13.5”
• Bottom Bracket Height: 11.5"
• Standover: 8.75"

Handlebar Geometry

• Rise: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°

SHIPPING OPTIONS:

1. Standard : your BMX arrived in a 1m20 long box, 80% assembled. You have to assemble front wheel, fork, handlebar, stem, seat. Pretty simple.
2. With gyro : we can had a gyro system to the bike. Allows you to spin the handlebar infinite times.
3. Fully assembled : Your bike will be fully assembled in a huge box and will be deliverd by a special agency. (3 to 5 open days).
